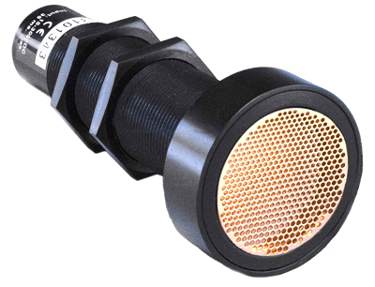

Ultrasonic Sensor U-S
(Metal cased version)
The body is threaded.
The two nuts are used for mounting.
|
Ultrasonic Sensor U-S(Metal cased version) The body is threaded. The two nuts are used for mounting. |

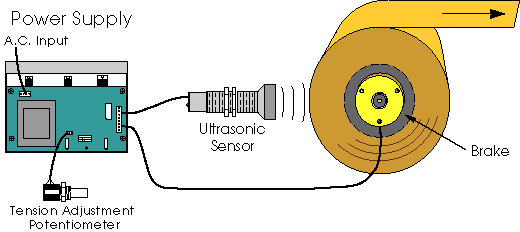

The sensor measures the diameter of the roll & sends a 0-10 VDC signal to the Placid power supply. Torque is automatically varied as roll size changes, to keep tension constant. Tension is adjusted by a remotely mounted potentiometer. The sensor measures distances by sending an ultrasonic pulse of sound, and then measuring the time for the return echo pulse.
Part Number : U-S, (Dimensions=inches)
Power Input . . . . . 15-30 VDC, 35 milliamps max.
Powered by Placid Ind. power supply.
Range . . . . . . . . Dual Range, (Push button)
Short: 3-40 inches (76-1000mm)
Long: 5-80 inches (127-2030mm)
Output. . . . . . . . 0 to 10 volts D.C.
100 ohm impedance
Push button adjustable endpoints and slope,
Resolution . . . . . 0.08 inches (2mm)
Repeatability . . . . 0.16 inches (4mm)
Humidity . . . . . . 5-90 percent, non-condensing
Compliance . . . . . CE
Connects to Placid Industries open power supply without ammeter.
 |
Ultrasonic Sensor U-B(Sealed, with a plastic case) MAINTAIN CONSTANT TENSION - The ultrasonic sensor is used for maintaining constant tension when using a brake for producing unwind (payout) tension, or when using a clutch for rewind tension. |
The sensor measures the diameter of the roll & sends a 0-10 VDC signal to the Placid power supply. Torque is automatically varied as roll size changes, to keep tension constant. Tension is adjusted by a remotely mounted potentiometer. The sensor measures distances by sending an ultrasonic pulse of sound, and then measuring the time for the return echo pulse.

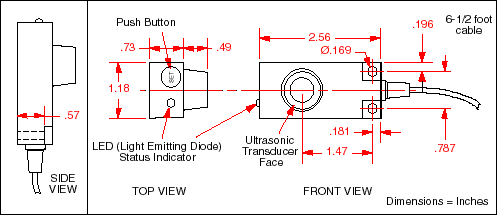

Part Number : U-B, (Dimensions=inches)
Power Input . . . . . 15-30 VDC, 30 milliamps max.
Powered by Placid Ind. power supply.
Range . . . . . . . . 3.9 - 27.5 inches (100-700 mm)
Close Limit: 3.9 - 25.6 inches (100-650 mm)
Far Limit : 5.9 - 27.5 inches (150-750 mm)
Output. . . . . . . . 0 to 10 volts D.C.
Push button adjustable endpoints and slope
Resolution . . . . . 0.012 inches (0.3 mm)
Repeatability . . . . 0.02 inches (<0.5 mm)
Protection class . . IP67
Connects to Placid Industries open power supply without ammeter.
