The constant current power supply can control any of the brakes and clutches. Plug it in, connect the brake or clutch, and you're ready to go with some simple adjustments. The Placid Ind. follower arm or ultrasonic sensor connects to the supply for constant tension unwinding / rewinding applications.
Enclosed version or open versions available.

• Easy to use - Determine the percent input current needed, then dial it in directly. The Span adjustment sets the 100 percent output current.
• Precise - Current levels are maintained regardless of brake or clutch coil resistance changes due to heating.

• Manual (Potentiometer) Control - Control output current manually with a potentiometer (or with the follower arm potentiometer)
• 0-10 Volt Control - Control output current with a 0-10 volt D.C. input signal

ENCLOSED

Dimensions = 4" high, 8" wide, 7" deep Enclosed power supply drawing

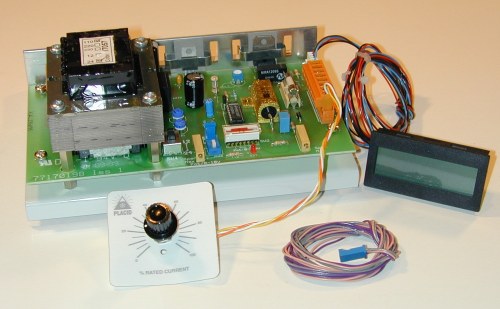

OPEN ( without ammeter ) or
OPEN ( with ammeter )

Dimensions = 3.5" high, 7-7/8" wide, 5.9" deep Open power supply drawing

The percent rated current potentiometer & optional L.C.D. ammeter can be mounted on your operator's panel, with the supply remotely mounted.

Specifications

• Output Voltage  . . . . . . . . . 0-12 or 0-24 volts D.C. (specify
  when ordering)

• Output Power  . . . . . . . . . . 22 watts

• Input Mains Voltage . . . . . . . 110 V.A.C., or 220 V.A.C. (specify
  when ordering)

• Cycles  . . . . . . . . . . . . . 50 / 60 Hz

• 0-10 Volt Input Current . . . . . 5 mA max.

• 0-10 Volt Input Resistance. . . . 2000 ohms

• Current Potentiometer . . . . . . 3/4 turn

Optional 10 Turn Potentiometer with locking knob For precisely setting & holding desired output current. Available for open & enclosed power supplies. Add '-10' to end of part number.
